New Systems Instruments

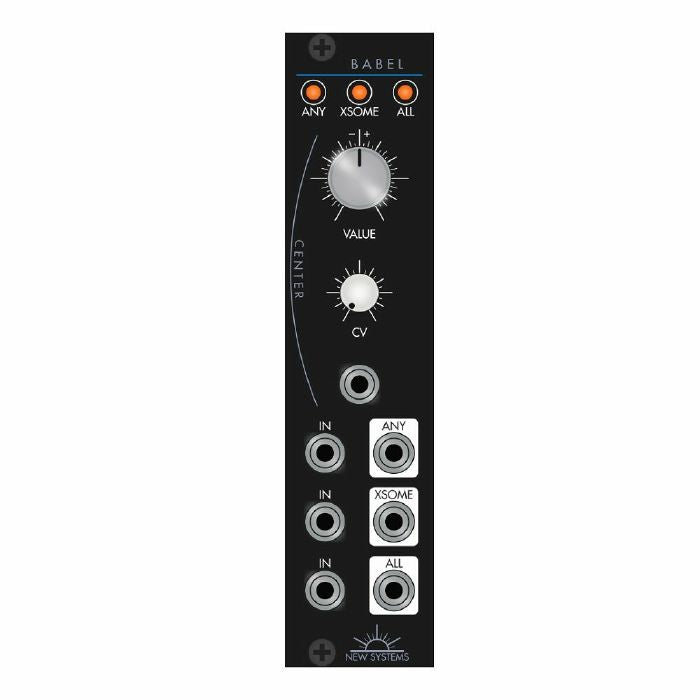

New Systems Instruments Babel Intermodulation

New Systems Instruments Babel Intermodulation

Regular price $169.00 CAD
Regular price Sale price $169.00 CAD
Sale Sold out
Shipping calculated at checkout.

Babel is a tool for creating massive intermodulation, and a workhorse for analog logic, depending on your use and interpretation of its function. It provides three inputs, which can be arbitrarily increased with the chainable expander (see below). For each of those inputs, Babel outputs the maximum value (ANY), the minimum value (ALL), and the balanced middle value (XSOME), which follows along the center values of the input waves. What CENTER means is adjustable via knob and CV control. XSOME is particularly interesting, as it has the same general shape as a multiplication function, but with sharper edges. What this means it that Babel will create ring-mod like intermodulation—but with extra harmonics like those produced with a wavefolder, and with an arbitary number of inputs, instead of just two.

When viewed as a logic module, Babel takes any group of truth values and tells you whether any of them are true (ANY, the equivalent of “or” with just two values), whether all of them are true (ALL, the equivalent of “and” with just two values), and whether some, but not all of them are true (XSOME, the equivalent of “xor” with just two values). Turn CENTER all the way to the right for 0–+5V logic, or leave it centered for −5V–+5V logic—handy when your “logic” modules are really LFOs.

SPECS

Size 6HP
Depth 22mm
Power Consumption +12V 44mA
−12V 44mA
Output Swing −10V–+10V peak
Input Range −10V–+10V peak
Input Impedance 30kΩ
Output Impedance 150Ω
Output Drive 2kΩ (min), 20kΩ+ (ideal)
