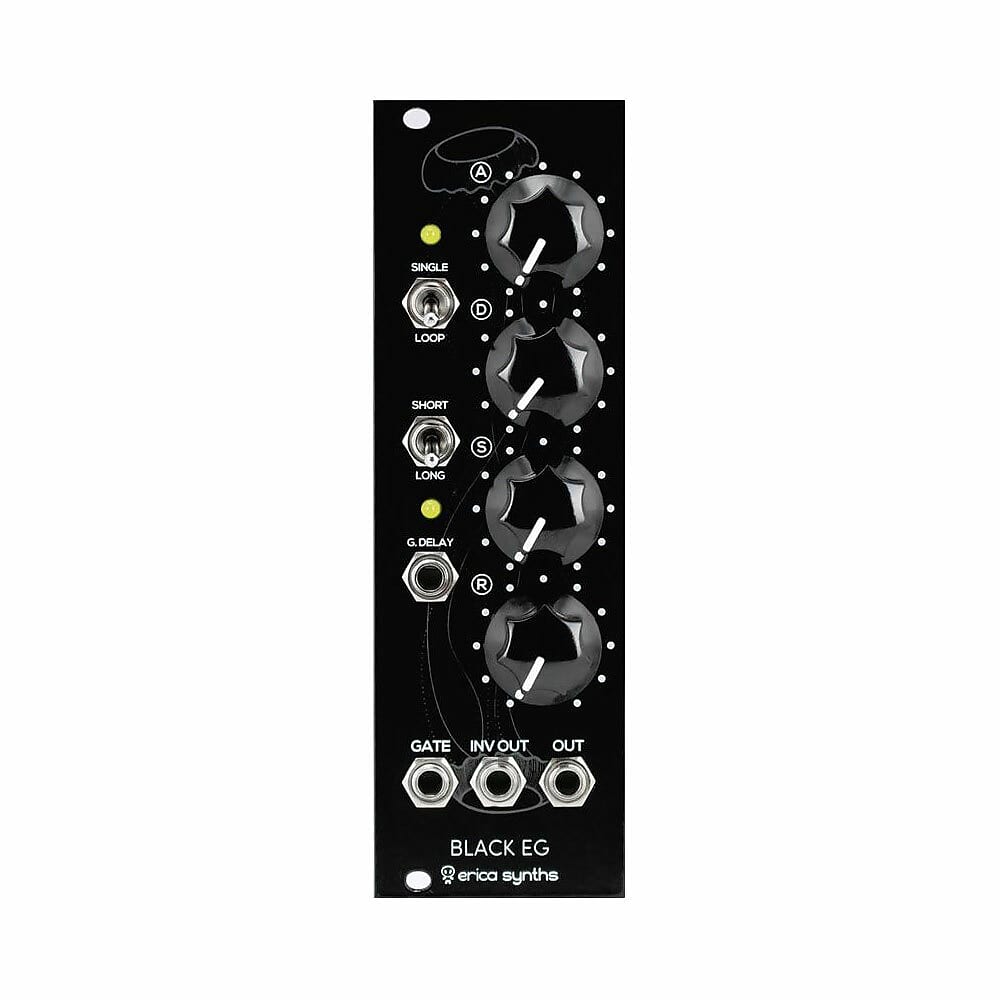

Erica Synths Black EG

Erica Synths Black Envelope Generator is a compact, fully analogue envelope generator with some cool bonus features like gated loop and gate delay for nice acid basslines and veeeerrryyy slow drones.

We introduced a distinct looping feature (when the gate patchcable is patched, looping starts on gate on) and Gate Delay – the module outputs delayed gate signal after Attack stage. Chain up several (4-5) Envelope Generators, each with delayed gate to create evolving polyphonic synth-like pads!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Gate input level	3…10V
Envelope amplitude	0…10V
Attack time (short/long)	0…600ms/6,5”
Decay time (short/long)	0…3”/30”
Sustain level	0…10V
Release time (short/long)	0…3”/35”
Panel width	8HP
Module depth	25mm
Power consumption	25mA@+12V, 15mA@-12V
