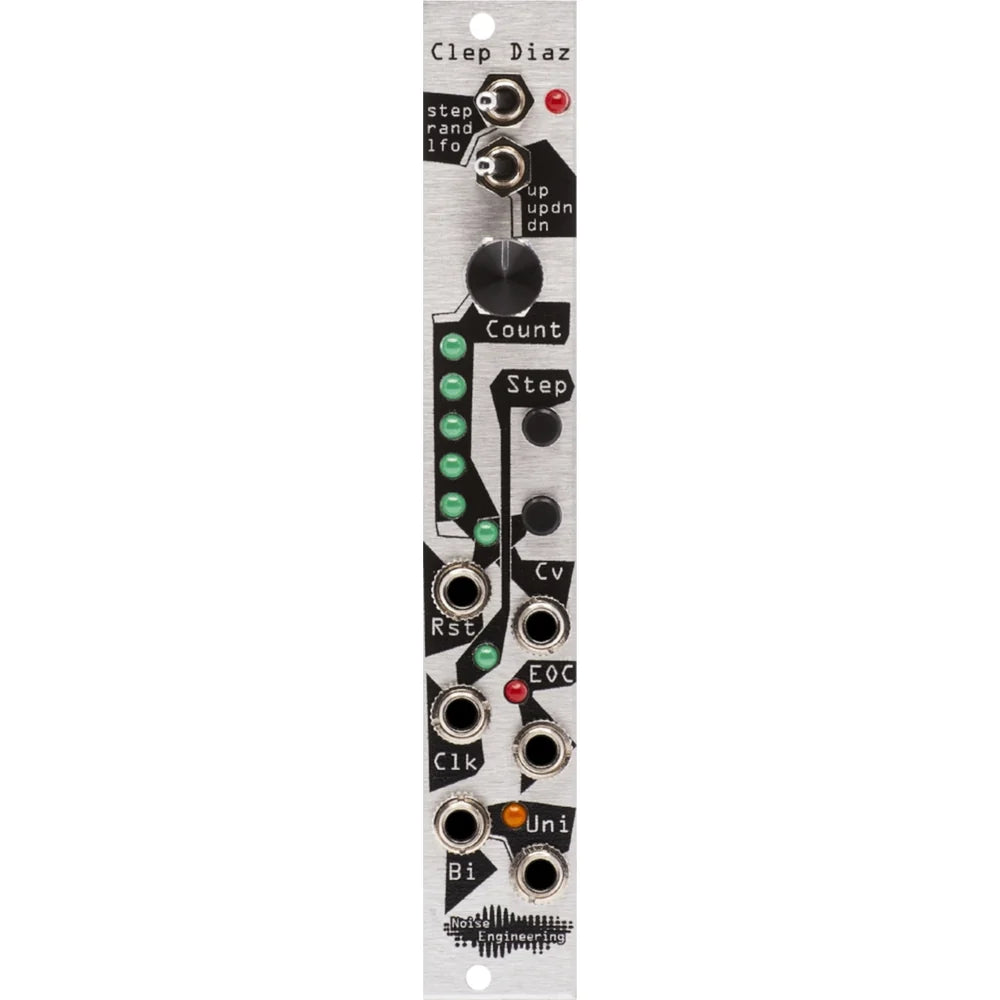

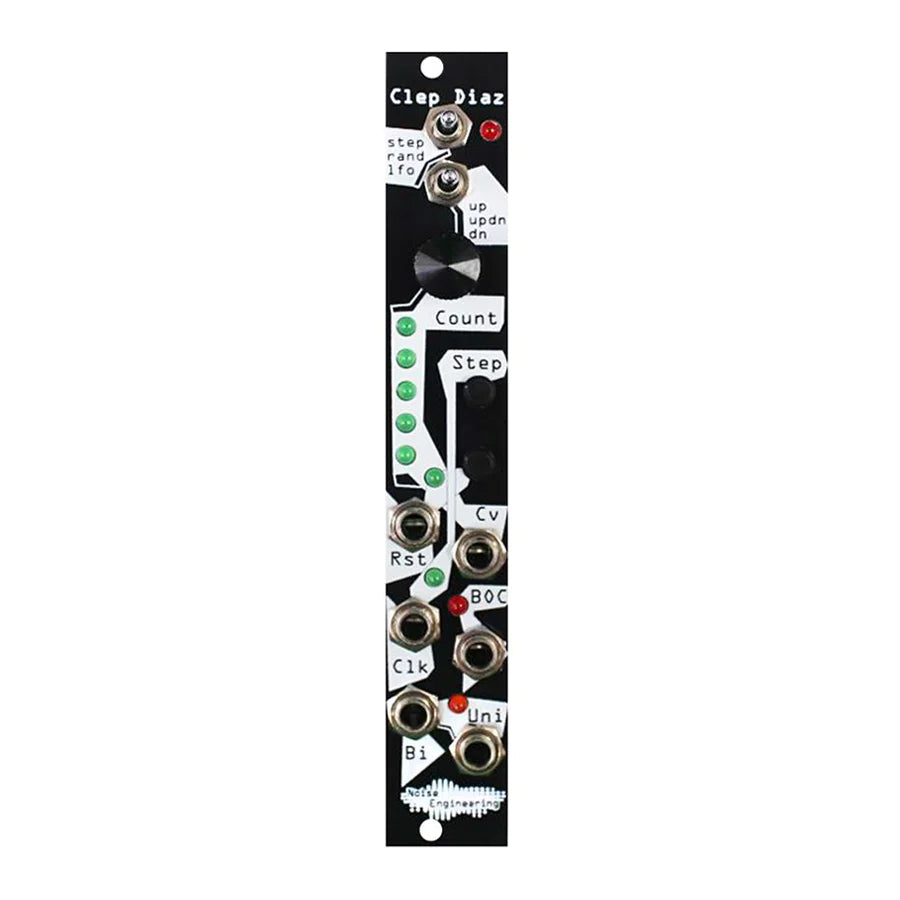

Noise Engineering Clep Diaz

Multimode CV generator & LFO in 4HP

Clep Diaz is a compact step CV and LFO generator with tons of function built in. In step and random modes, use the encoder to control the number of steps in the sequence; in LFO mode, the encoder controls the amplitude of the wave. Toggle the directionality of the sequence: up, down, or up/down to customize the CVs further. CD also gives CV control over the number of steps in the sequence and an end-of-cycle trigger output. Unipolar and bipolar outputs allow maximal control.

Size and power:

• 4 HP
• +12v: 44ma
• -12v: 10ma
• +5v: 0ma
