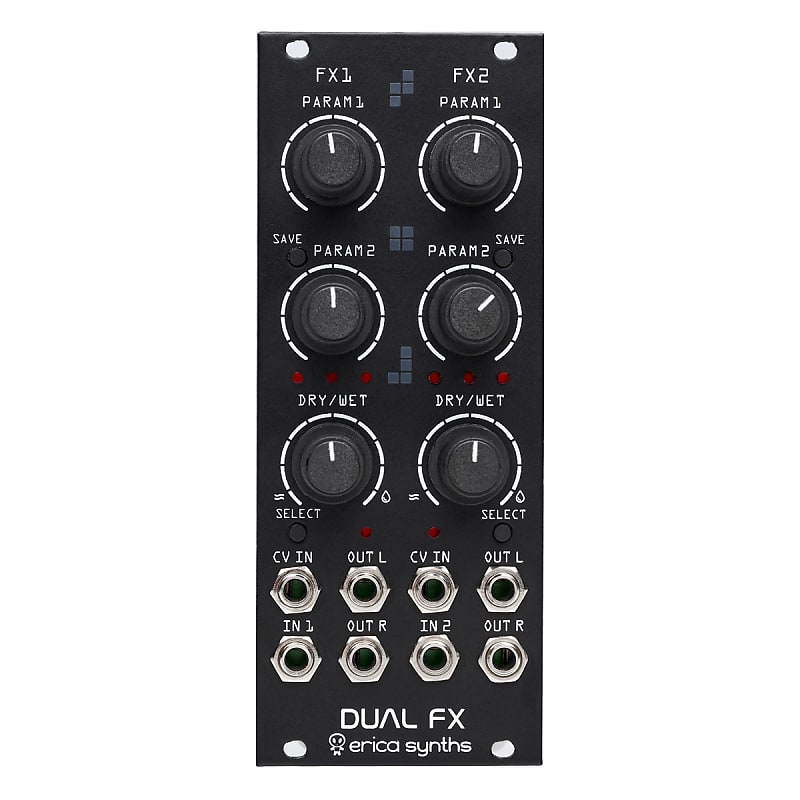

Erica Synths Dual FX

To add some space to your compositions and nuances in sound design Erica Synths Dual FX module brings you two identical sections of 8 custom effects with two adjustable and CV controllable parameters.

Dual FX combines two Spin FV-1 chips in one module, each filled with eight custom effect programs with two adjustable and CV controlled parameters per effect and analogue dry/wet circuit. All parameter settings can be saved with the effect and recalled instantly during the performance. Also the output of the first FX section is normalised to the second input so creating huge layers of effects is easy.

FX:

• Mono delay
• Stereo delay
• Hi-pass delay
• Big reverb
• Saturated reverb
• Stalker reverb
• Ripper
• Dual pitch shifter

Technical specs:

Audio output level	-5...+5V
CV level (full span)	-5...+5V
Power consumption	118mA@+12V, 61mA@-12V
Module width	10HP
Module depth	45mm
