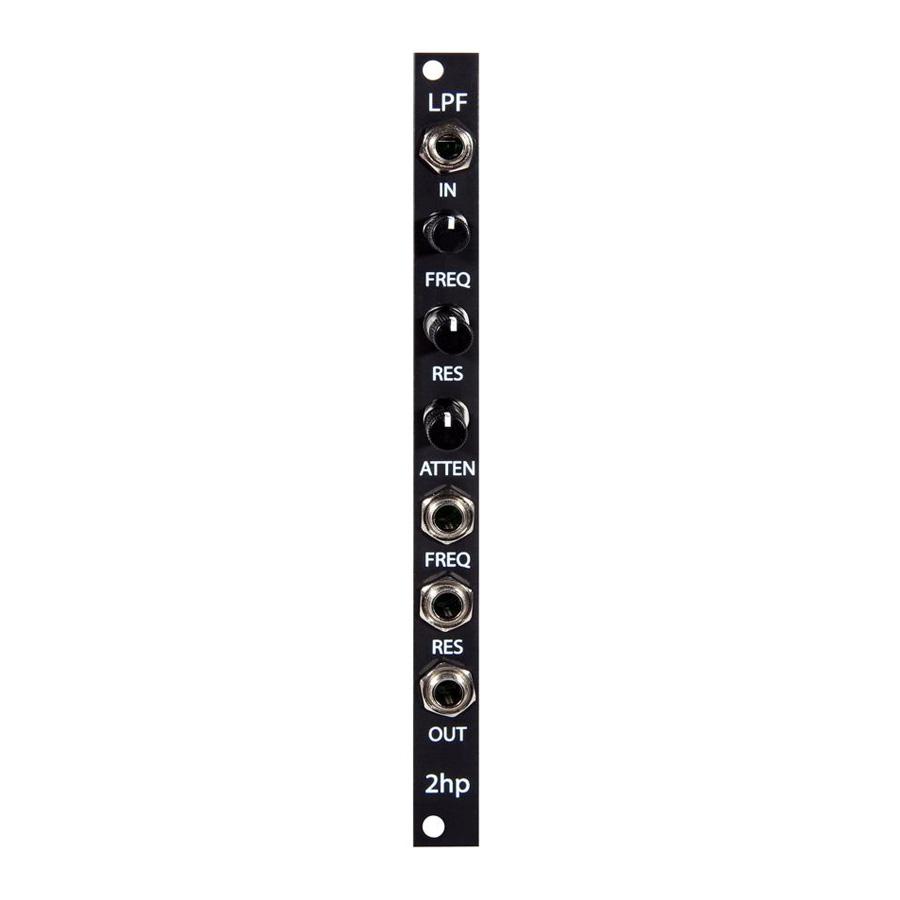

LPF

LPF is a four-pole, voltage controlled low-pass filter. Its 24 dB per octave slope and OTA topology provide a smooth, buttery character. Resonance can be pushed to self oscillation, turning it into a sine wave VCO with accurate 1V/oct tracking across four octaves.

In addition, CV over resonance gives dynamic sound shaping possibilities under voltage control. Hit the slope with LPF.

• Analog, voltage controlled low pass filter
• Classic four pole, OTA topology
• CV over resonance
• Capable of self oscillation
• Accurate 1V/oct tracking across four octaves
• Width: 2HP

• Depth: 47mm

• Power: 20ma @+12v  / 20ma @-12v
