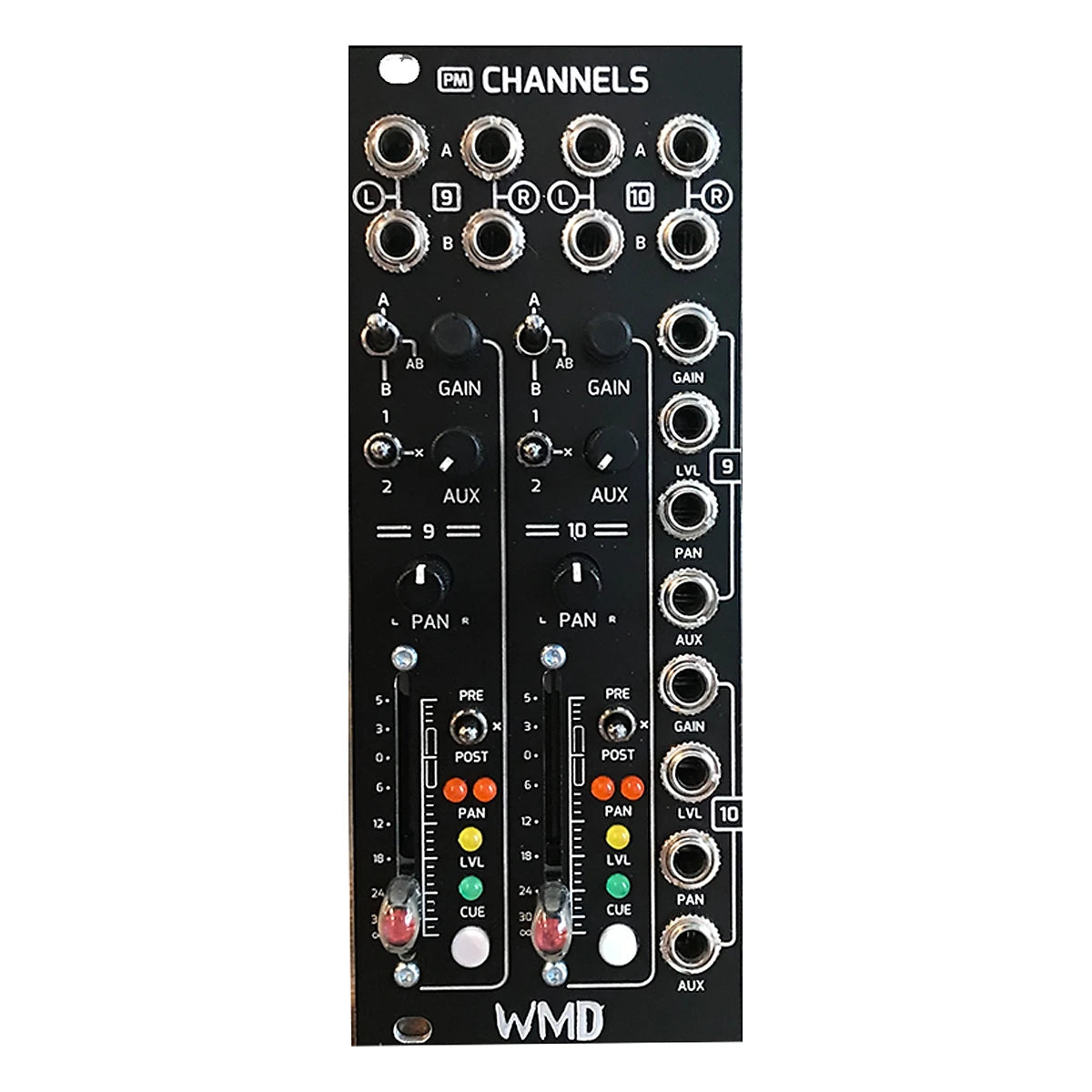

WMD PM Channels

The PM Channels is an expansion module for the WMD Performance Mixer

• Two sets of inputs for each stereo channel that can be selected or summed via the 3-way toggle switch.
• More than 30dB of gain over each channel lets you use external sources such as consumer audio equipment, not just modular signals.
• CV over Gain, Level, Pan, and the Aux send for both channels.
• Channels can be muted with PM Mutes expander as well as included in the Cue Mix.

Specs:

• Power: +12V = 120mA; -12V = 120mA
• Size: 10HP
• Depth: 45mm
• Cannot be used independently of the Performance Mixer.
• Only one PM Channels may be added to a Performance Mixer
